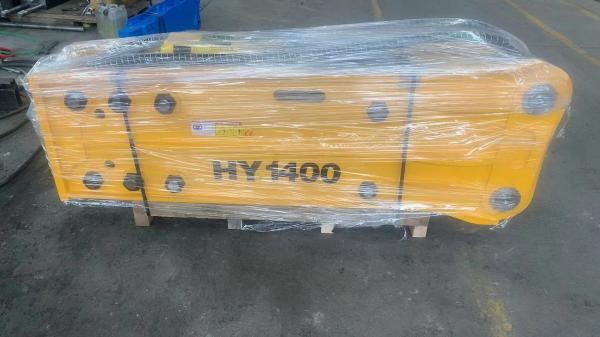

Top Type Hydraulic Rock Breaker Demolition Hammer 140mm High Strength

Name: Top Type Hydraulic Rock Breaker Demolition Hammer 140mm High Strength
Brand: HANYUN
Price: 1 USD

Brand Name : HANYUN

Model Number : SB81/HY140

Certification : CE

Place of Origin : CHINA

MOQ : 1 set/Negotiable

Price : Negotiable

Payment Terms : L/C, , T/T

Supply Ability : 5000 sets per year

Delivery Time : 5-20 working days

Packaging Details : fumigation-free plywood box/ exported packages

Item 1 : Hydraulic Rock Breaker

Item 2 : Hydraulic Demolition Hammer Tools

Breaker chisel diameter : 140 mm

Breaker chisel feature : High strength 42CRMO anti-wearing

Breaker chisel materials : 40CR/42CRMO

Near port : Qingdao/Tianjin/Shanghai Port

Applicable vechile weight : 20-30t

Applicable brand : SANY, XCMG. KOMATSU, KOBELCO,CAT and other brands

Color : Blue /Yellow

Contact Now

Hydraulic Rock Breaker Skid Steer Loader Hydraulic Demolition Hammer Tools 140mm

(1) Product description

Hydraulic rock breaker is widely used to crush rocks or stones, to breake concrete roads or hard roads,

to demolish concrete buildings or concrete structures.

(2)Main technical parameters on hydraulic rock breaker hydraulic demolition hammer

Model	HY45	HY53	HY68	HY75	HY85
Breaker shell (KGS)	40	60	100	200	400
Total weight (KG)	102	140	264	345	493
Size (MM)	750270480	830290570	950330700	1140370740	1270370800
Driving oil pressure (KG/CM2)	90-120	90-120	110-140	120-150	130-160
Driving oil flow (L/MIN)	20-40	25-50	40-70	50-90	60-100
Striking(BPM)	700-1200	600-1200	500-900	400-800	400-800
Soft hose diameter (INCH)	1/2	1/2	1/2	1/2	3/4
Breaker chisel diameter (MM)	45	53	68	75	85
Breaker chisel weight (KG)	8	12	16	22	48
Applicable carrier weight (T)	1.2-3.0	2.0-4.0	4-7	6-9	7-14

(3) Main technical parameters on hydraulic rock breaker hydraulic demolition hammer

Model	HY100	HY120	HY135	HY140/SB81	HY155
Breaker shell (KGS)	450	500	600	800	1450
Total weight (KG)	736	1374	1663	1700	2350
Size (MM)	1340430970	14755301000	16105301280	16605301280	19006351350
Driving oil pressure (KG/CM2)	150-170	150-170	180-220	190-230	230-260
Driving oil flow (L/MIN)	80-110	90-120	100-150	120-180	180-240
Striking(BPM)	350-700	350-650	350-600	350-500	300-450
Soft hose diameter (INCH)	3/4	3/4	1	1	1.2
Breaker chisel diameter (MM)	100	120	135	140	155
Breaker chisel weight (KG)	50	120	125	130	190
Applicable carrier weight (T)	11-16	12-18	18-23	19-25	25-30

(4) Main technical parameters on heavy duty hydraulic jack hammer for excavator

Model	HY165	HY175	HY185	HY195
Breaker shell (KGS)	1500	1700	2100	2300
Total weight (KG)	3350	4102	4950	5260
Size (MM)	20106501420	23107151630	22407501620	24607501670
Driving oil pressure (KG/CM2)	260-280	260-280	280-300	280-320
Driving oil flow (L/MIN)	190-250	210-290	220-270	230-280
Striking(BPM)	300-450	200-350	180-220	180-200
Soft hose diameter (INCH)	1.2	1.2	1.2	1.2
Breaker chisel diameter (MM)	165	175	185	195
Breaker chisel weight (KG)	220	260	300	340
Applicable carrier weight (T)	30-36	36-42	42-48	48-55

Top Type Hydraulic Rock Breaker Demolition Hammer 140mm High Strength

(5) Products packing and transportation

Packing: firstly covered with thick anti-collision plastic film on plywood pallets/cartons, then loaded into container

Transportation: Sea transportation/land transportation by container
